Acrel sungrow smart meter DTSD1352 din rail type multi-function energy meter is an intelligent instrument designed mainly for energy statistics and management needs of power systems, industrial and mining enterprises, and public facilities. Integrate common power parameter measurement and power metering and assessment management, and provide various power data statistics for the past 48 months. DTSD1352 has 2~31 times sub-harmonic and total harmonic content detection, with switch input and switch output, it can realize "remote signal" and "remote control" functions, and has alarm output.
The DTSD1352-C solar inverter smart meter is designed for PV systems and is compatible with inverter brands such as Sungrow and Solis. The dtsd1352 sungrow C can communicate directly with compatible inverters through RS485 to provide energy measurement and monitoring functions.
Current Input: AC 80A,1(6)A
Voltage Input: AC 3*230/400V
Accuracy: Class 0.5
Suitable for: Sungrow/Solis inverter

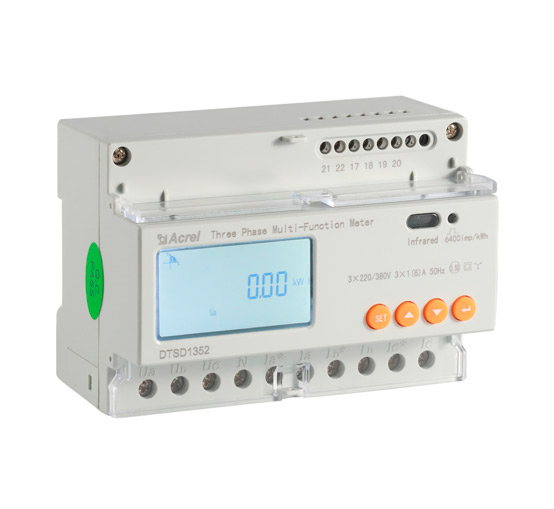

Acrel DTSD1352-C Solar Inverter Smartmeter Sungrow
Parameters
Acrel DTSD1352-C Solar Sungrow Inverter Smart Meter Video
Wiring of Acrel sungrow dtsd1352 c three phase energy meter
DTSD1352 Manual -C Solar inverter smart meter interface Ua/Ub/Uc is A/B/C phase voltage input, interface N is the neutral wire, interface Ia*/Ia is A phase current inlet/outgoing wire, interface Ib*/Ib is B phase current inlet/outgoing wire, interface Ic*/Ic is C phase current inlet/outgoing wire, interface 21/21 is RS485 A/B, interface 17/18 is Active energy,19/20 is reactive energy.
Acrel Sungrow DTSD1352 C Solar Inverter Smart Meter Application
We can also offer kinds of split core current transformer for sale, anything you need, please contact us.
